Pre-Fabricated Plant Room Distribution Systems

DESCRIPTION

The Rhico DN40 TV3-300 mixing pump group is designed for  temperature control of the primary circuit for either heating or cooling installations. It can be installed directly on the zone manifold or independently using a connection adapter kit DN65 and DN50.

The Rhico PFPR system is the first ready-to-use solution that supports twin head pump installations.

FEATURES
  • Plug & Play module
  • Possibility of right/left flow reversal installations
  • Pump groups – ready for installation of twin pumps
  • Easy access to the components
  • Ready for the installation of temperature and pressure sensors
  • Painted with epoxy powder coating
  • Tested, insulated and ready to use
Description Part no.
TV3-300 DN40 – Mixing pump group – servomotor not included 49043610
Rotary electric actuator 230V 3P 20317350
Rotary electric actuator 24V 0÷10V 20317351
Rhico PFPR TV3-300 Mixing Pump Group

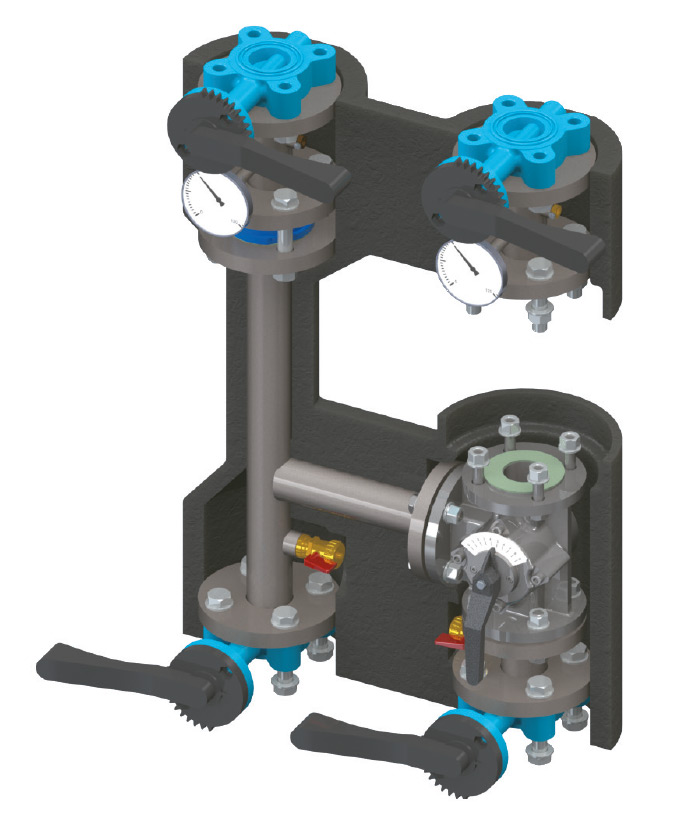

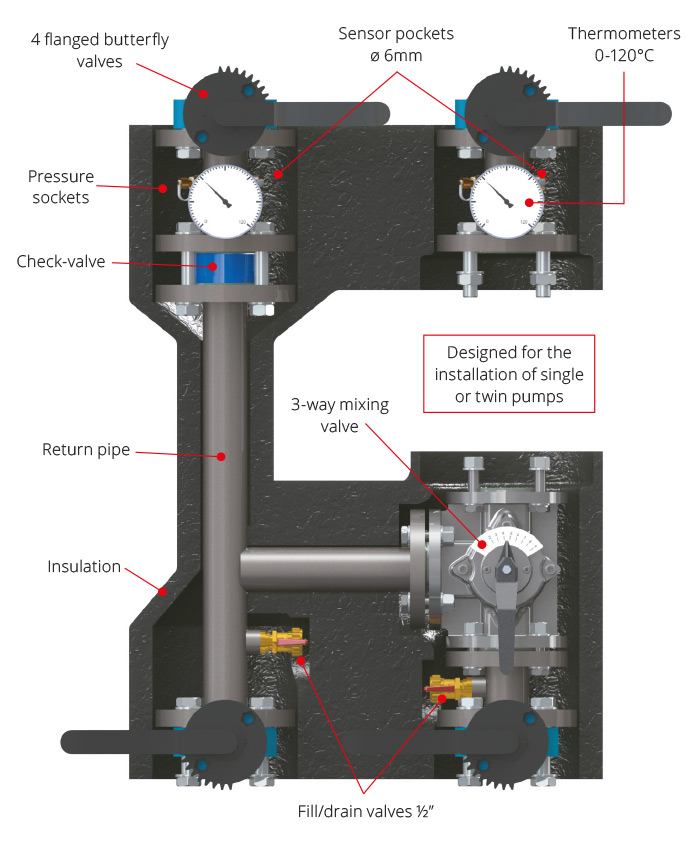

Rhico PFPR TV3-300 Mixing Pump Group Cutaway

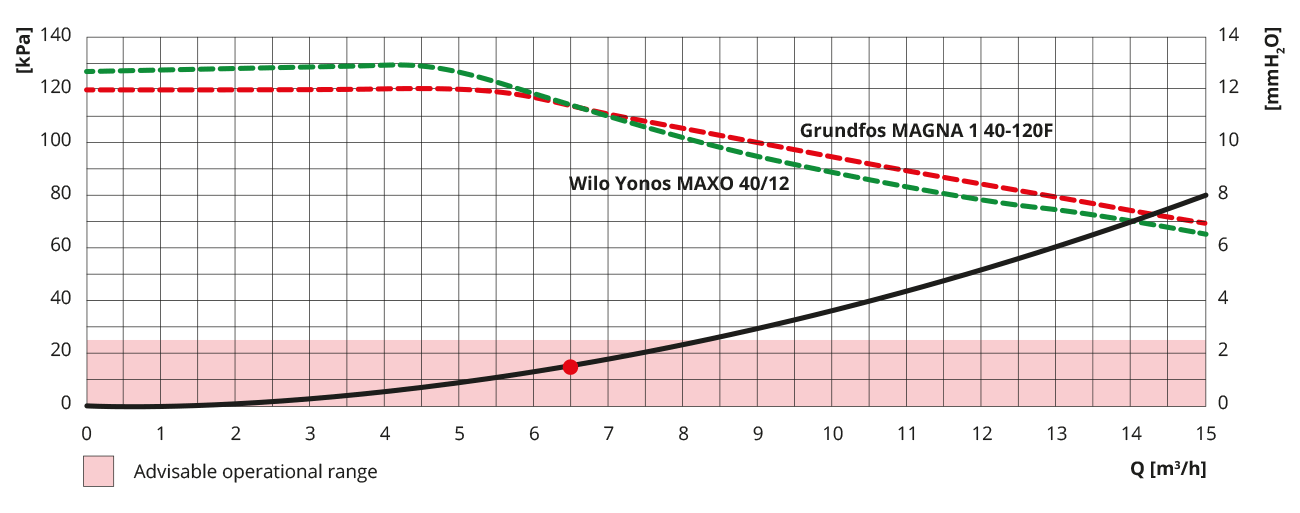

Technical specifications
Output ΔT 5 K 38 kW
Output ΔT 20 K 150 kW
Max temperature 100°C
Max. pressure 10 bar
Flow rate (ΔP 15 KPa) 6.46 m3/h
Mixing valve Kvs 25
Nominal Ø DN40
Material Fe EN 10217-1
Material of insulation Trocellen C080 RN2
sp 30 mm
0,034 W/mK
Material of insulation FEPP 40 g/l
sp 30 mm
0.035 W/mK
Max overall dimension
(packaging)
L 940 x W 660 x H 477
Painted with epoxy powder coating

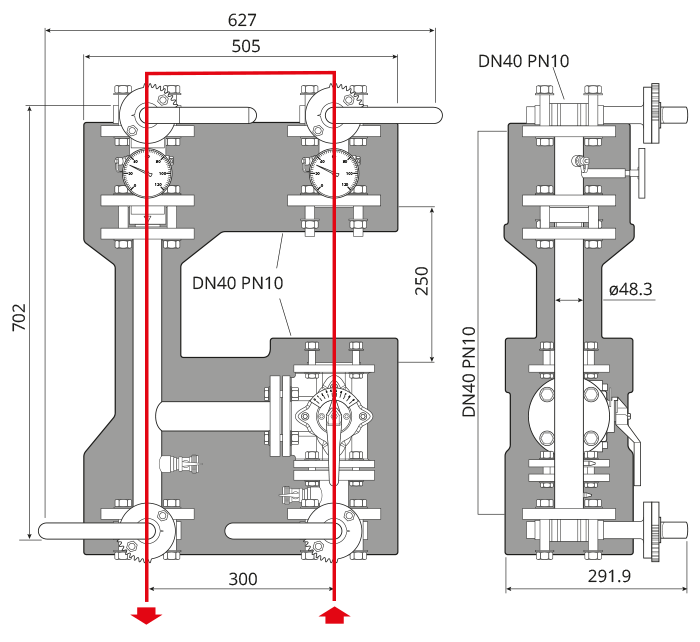

Rhico PFPR DN40 TV3-300 Mixing Pump Group Dimensions
Accessories Part no.
Grundfos MAGNA1 40-120 F
(insulation included)
20313505
Grundfos MAGNA1 D 40-120 F 20313522
Insulation for Grundfos MAGNA1 D 40-120 F 20290267
Wilo YONOS MAXO 40/12 20313176
Insulation for Wilo MAXO 40/12 20290272
Wilo YONOS MAXO D 40/12 20313205
Insulation for Wilo YONOS MAXO D 40/12 20290264

For further details and information on accessories, please go to the accessories page.
