Pre-Fabricated Plant Room Distribution Systems

DESCRIPTION

The Rhico DN40 S-300 direct pump group is designed for primary circuit circulation for either heating or cooling installations. It can be installed directly on the zone manifold or independently using a connection adapter kit DN65 and DN50.

The Rhico PFPR system is the first ready-to-use solution that supports twin head pump installations.

FEATURES
  • Plug & Play module
  • Possibility of right/left flow reversal installations
  • Pump groups – ready for installation of twin pumps
  • Easy access to the components
  • Ready for the installation of temperature and pressure sensors
  • Painted with epoxy powder coating
  • Tested, insulated and ready to use
Description Part no.
S-300 DN40 – Direct Pump Group 49043600

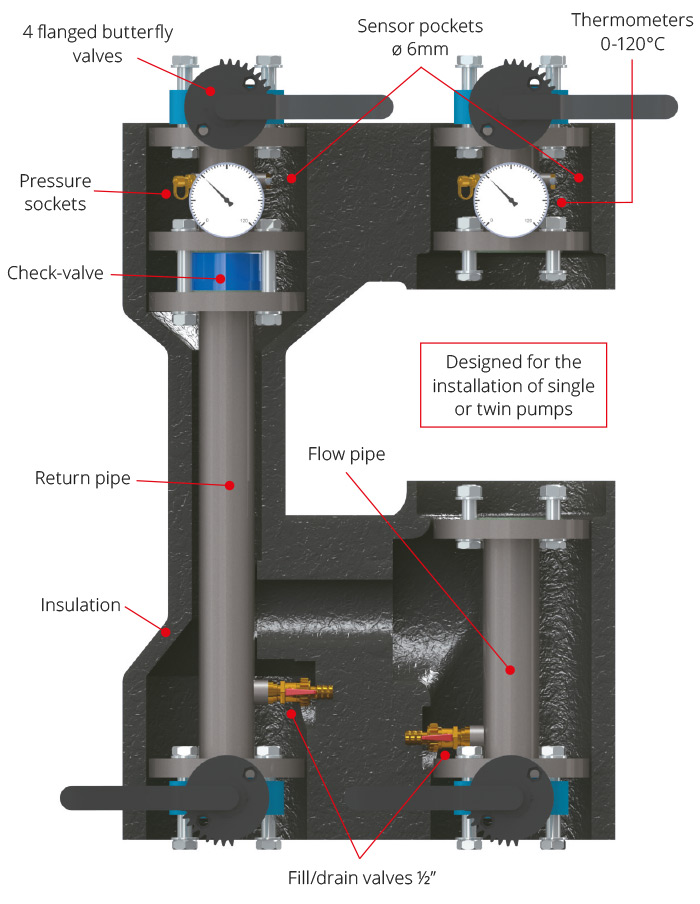

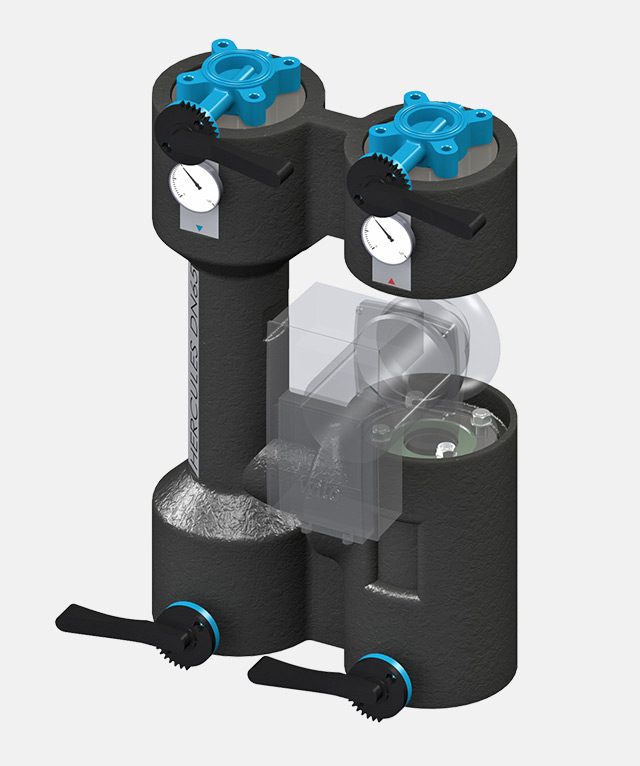

Rhico PFPR DN40 S300 Direct Pump Group

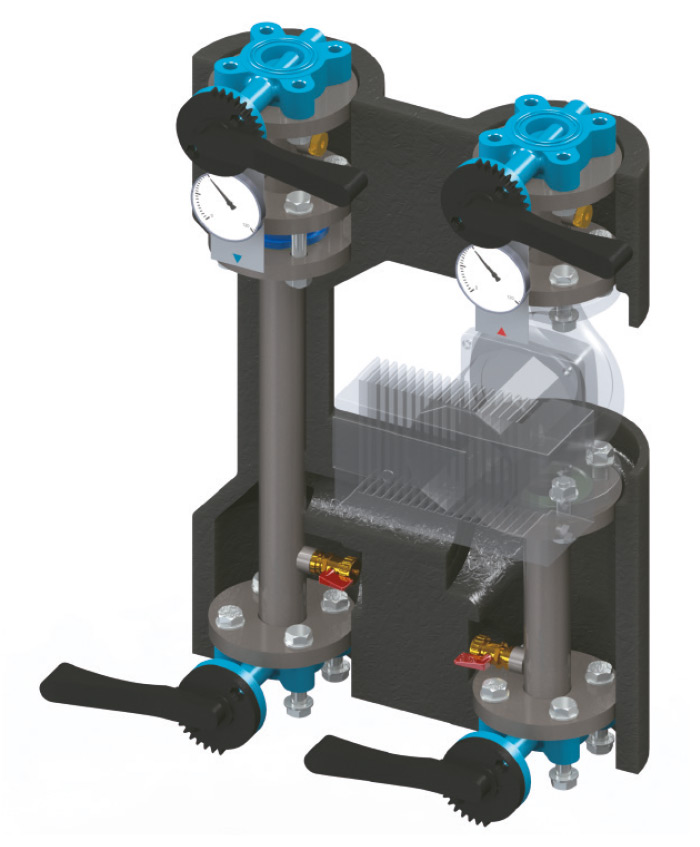

Rhico PFPR DN40 S300 Direct Pump Group Cutaway
Technical specifications
Output ΔT 5 K 53 kW
Output ΔT 20 K 211 kW
Max temperature 100°C
Max. pressure 10 bar

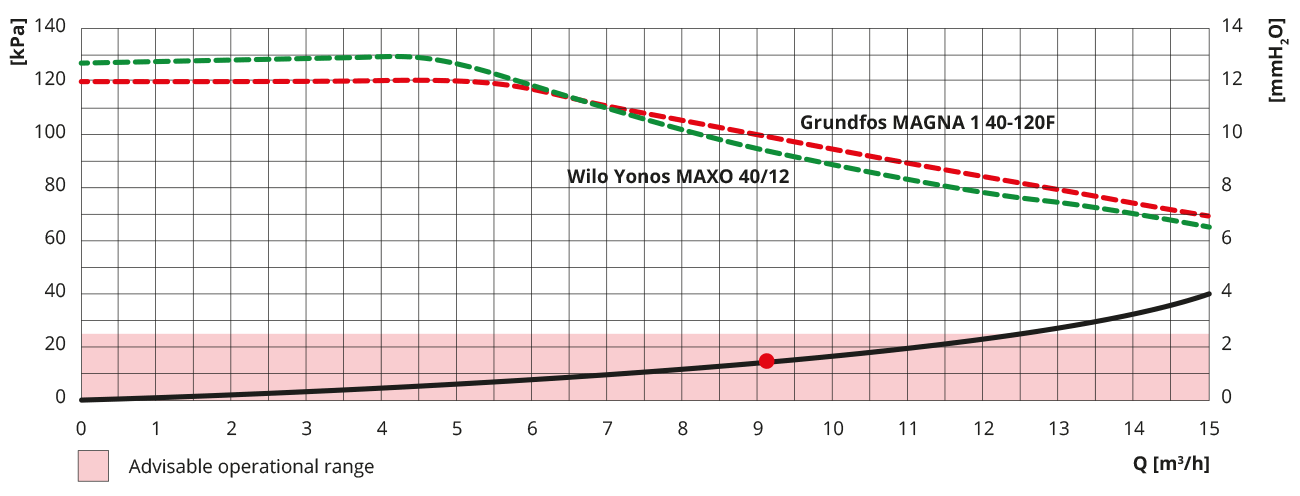

Flow rate (ΔP 15 KPa) 9.1 m3/h
Nominal Ø DN40
Material Fe EN 10217-1
Material of insulation Trocellen C080 RN2
sp 30 mm
0,034 W/mK
Material of insulation FEPP 40 g/l
sp 30 mm
0.035 W/mK
Max overall dimension
(packaging)
L 940 x W 660 x H 477
Painted with epoxy powder coating

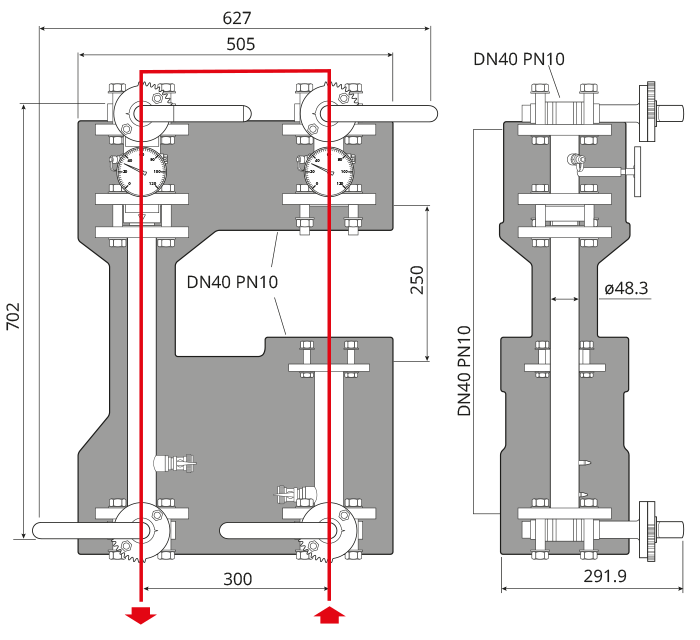

Rhico PFPR DN40 S300 Direct Pump Group Dimensions
Accessories Part no.
Grundfos MAGNA1 40-120 F
(insulation included)
20313505
Grundfos MAGNA1 D 40-120 F 20313522
Insulation for Grundfos MAGNA1 D 40-120 F 20290267
Wilo YONOS MAXO 40/12 20313176
Insulation for Wilo MAXO 40/12 20290272
Wilo YONOS MAXO D 40/12 20313205
Insulation for Wilo YONOS MAXO D 40/12 20290264

For further details and information on accessories, please go to the accessories page.
