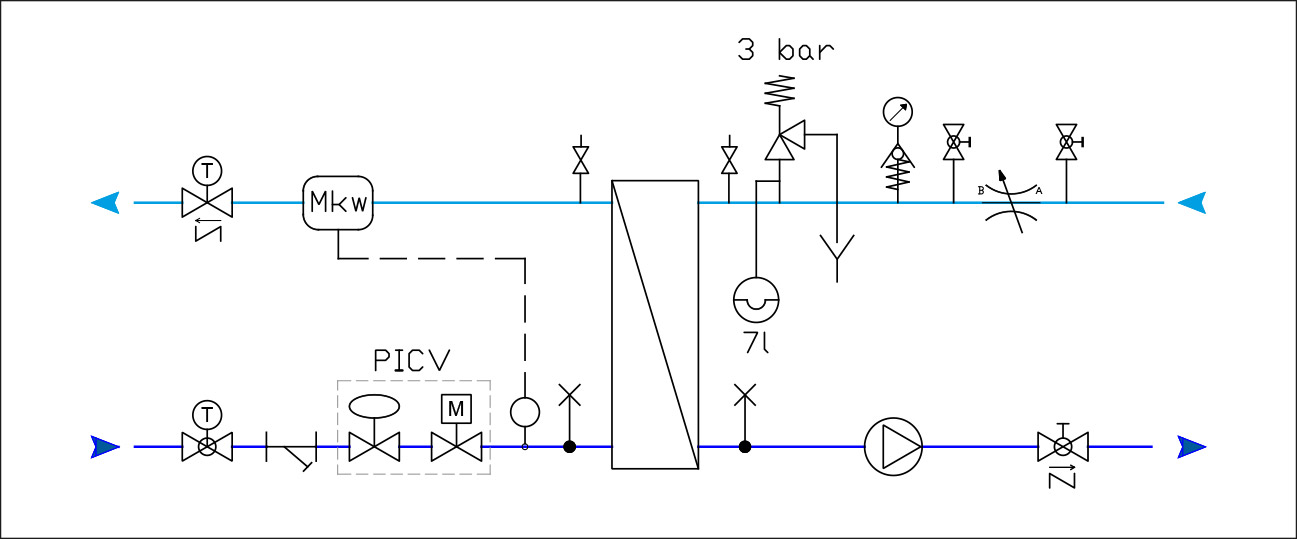

HYDRAULIC CIRCUIT
HYDRAULIC CIRCUIT COMPONENTS
| 1. | Insulated brazed plate heat exchanger |
| 2. | Ultrasonic energy meter G 1” – 130mm |
| 3. | Sensor pocket for heat meter |
| 4. | Filter |
| 5. | Pressure independent control balancing valve with 230V electric actuator |
| 6. | Expansion tank |
| 7. | Manual air vent valve |
| 8. | Ball valve |
| 9. | Manometer |
| 10. | Flow regulator with load and washing system |
| 11. | 3 bar safety valve |
| 12. | High efficiency Wilo pump |
| 13. | Loading system |

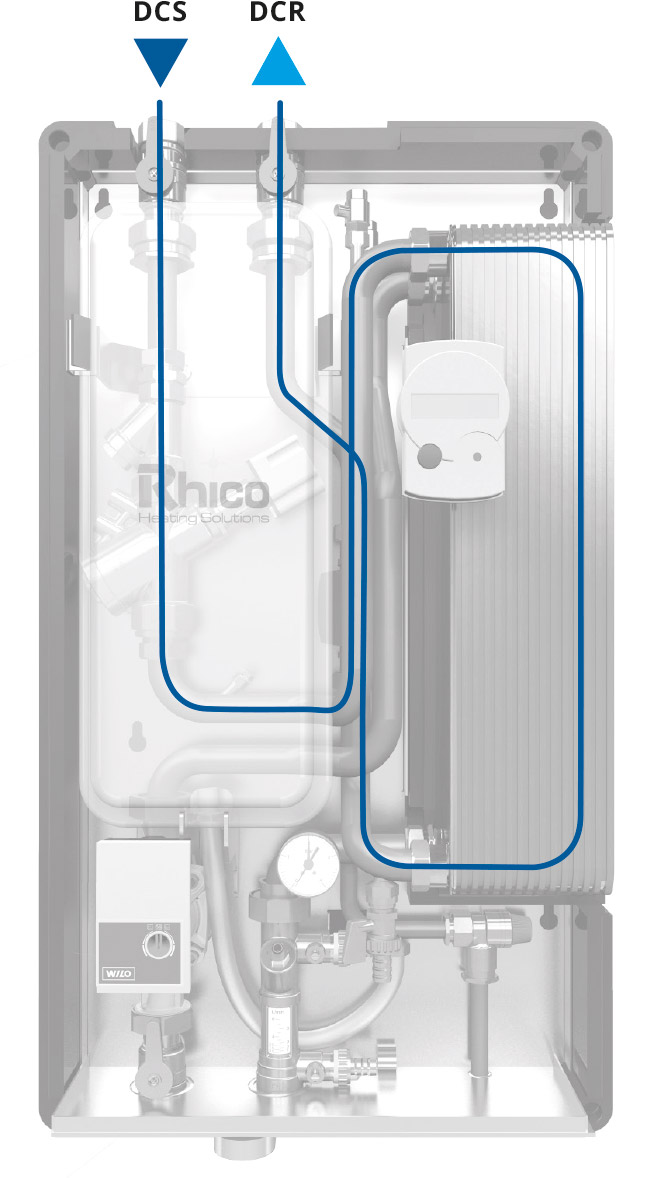

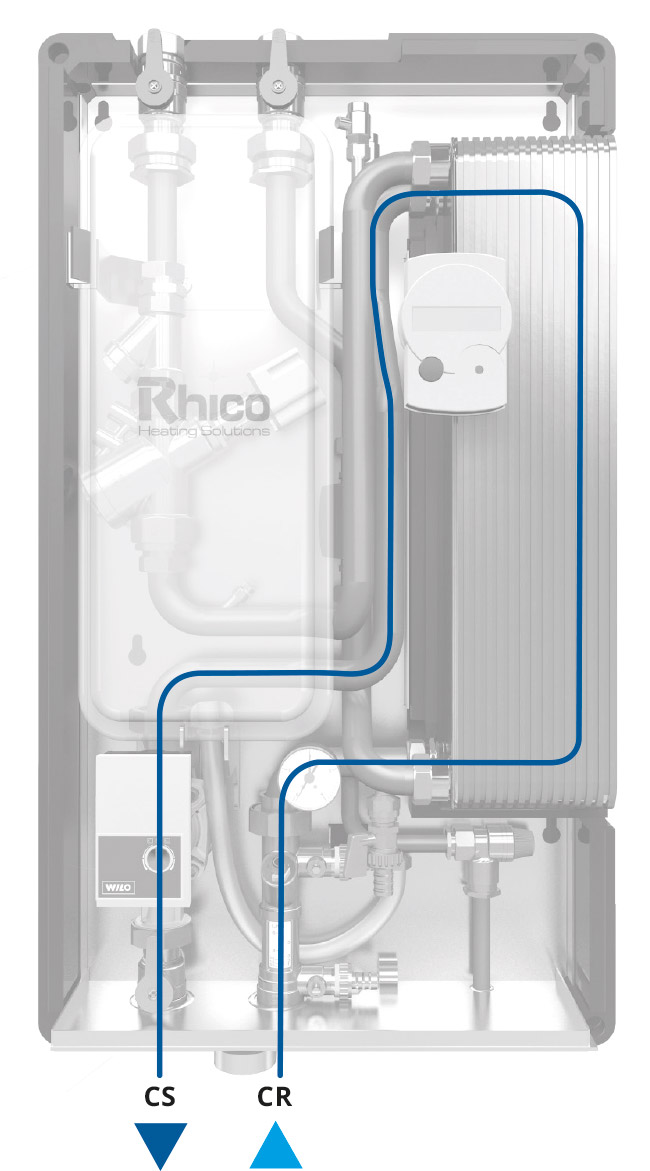

CONNECTIONS
| DCS | District cooling supply G 1” (int. thread) |
| DCR | District cooling return G 1” (int. thread) |
| CR | Cooling return G 1” (int. thread) |
| CS | Cooling supply G 1” (int. thread) |
GENERAL DATA
| Max pressure: | 10 bar |
| Max supply temperature: | 50°C |
| Min temperature: | 5°C |
| Weight: | IC3 22kg, IC6 23 , IC10 25kg, IC14 27kg |
| Electrical supply: | 230 V |
| Dimensions with cover (H x W x D): | 835 x 475 x 226mm |

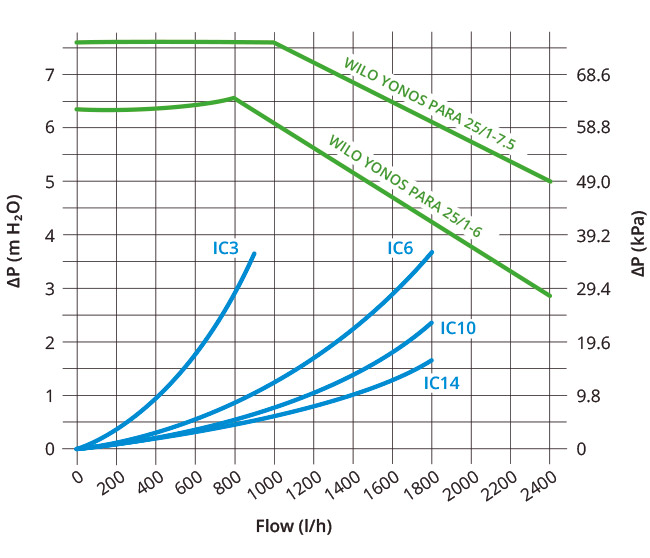

PUMP CHARICTERISTICS

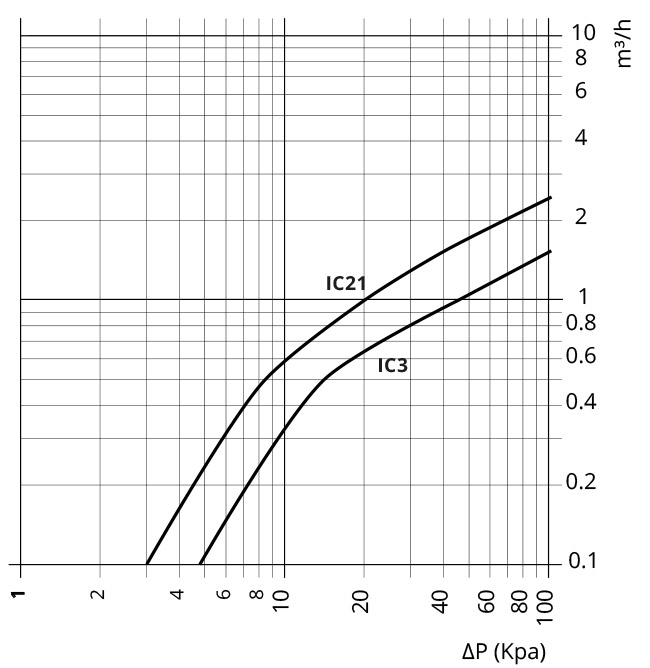

PRESSURE LOSS COOLING CIRCUIT
